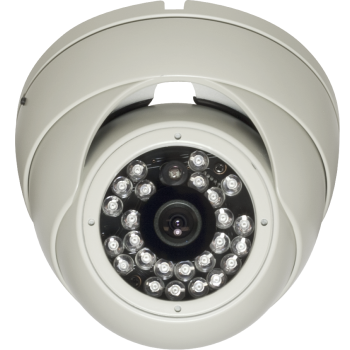

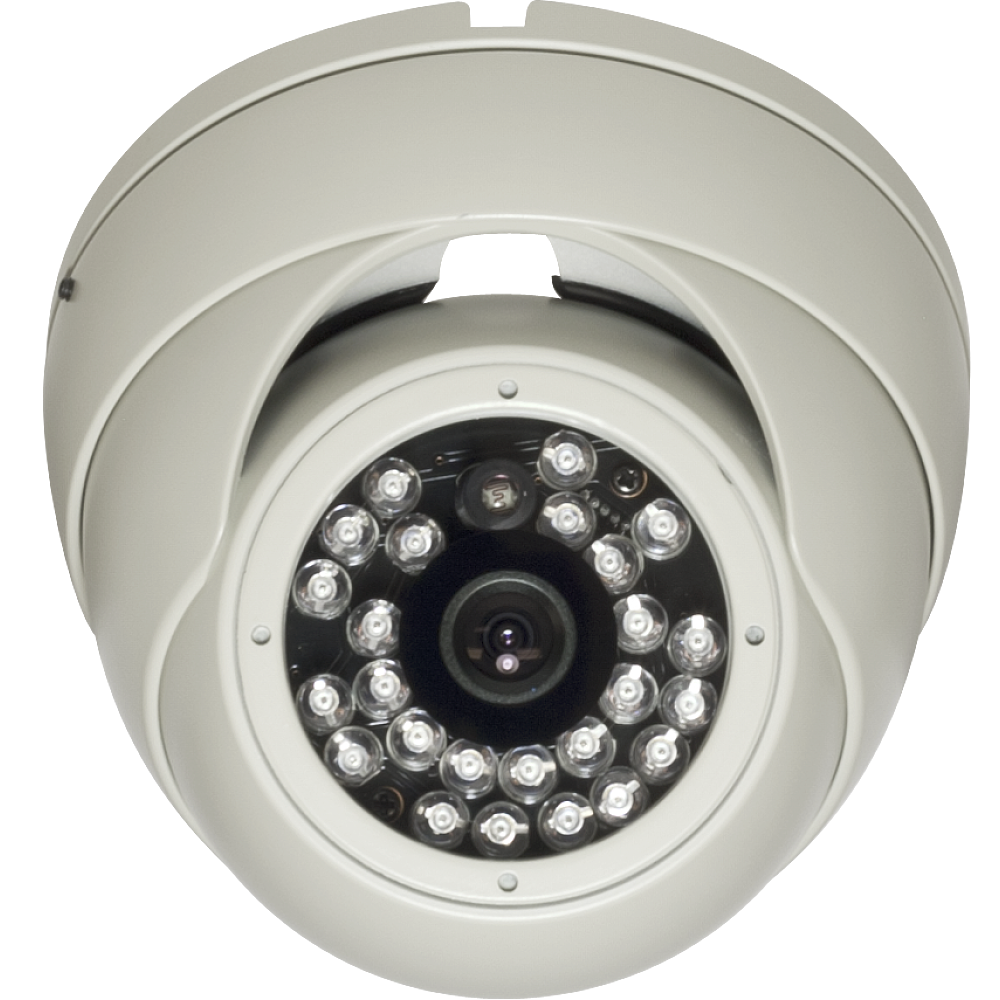

Eyemax | HD-SDI 1080P EYEBALL IR Dome Camera with Fixed Lens

Compare
Category:

Description

FEATURES

  • 1/3″ Sony CMOS
  • HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
  • HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 25pcs)
  • Upgraded water-resistant IP-67 housing / Smart IR / True Day & Night(ICR)
  • DNR (Digital Noise Reduction) / Easy installation
  • 3.6 / 4.3mm Mega Pixel IR Fixed lens

SPECIFICATIONS

Resolution HD-SDI(1080p, 720p) / 1000 TV line over
Sensor 1/3″ Sony CMOS
Total Pixels 2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels 1944(H) × 1092(V) = 2.1M Pixel
Scanning System Progressive
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE292M (HD-SDI)
Min.Illumination 0 lux at IR On
White Balance Auto
Electronic Shutter Speed Auto (1/30sec ~ 1/60,000sec)
Brightness Adjustable (0 ~ 20 Step)
DNR Middle
Day & Night Extern
Language English
Operating Temperature / Humidity 14°F ~ 122°F (−10°C ~ +50°C) / 30% ~ 80% RH
Storage Temperature / Humidity −4°F ~ +140°F (−20°C ~ +60°C) / 20% ~ 90% RH
Power DC 12V Only
